Big Data, Theory, and Black Boxes

Big Data, Theory, and Black Boxes:

Ensuring Evaluations do not 'Speak for Themselves'

Sam Stehle / @SamStehle

GeoVISTA Brown Bag Series, March 29, 2017

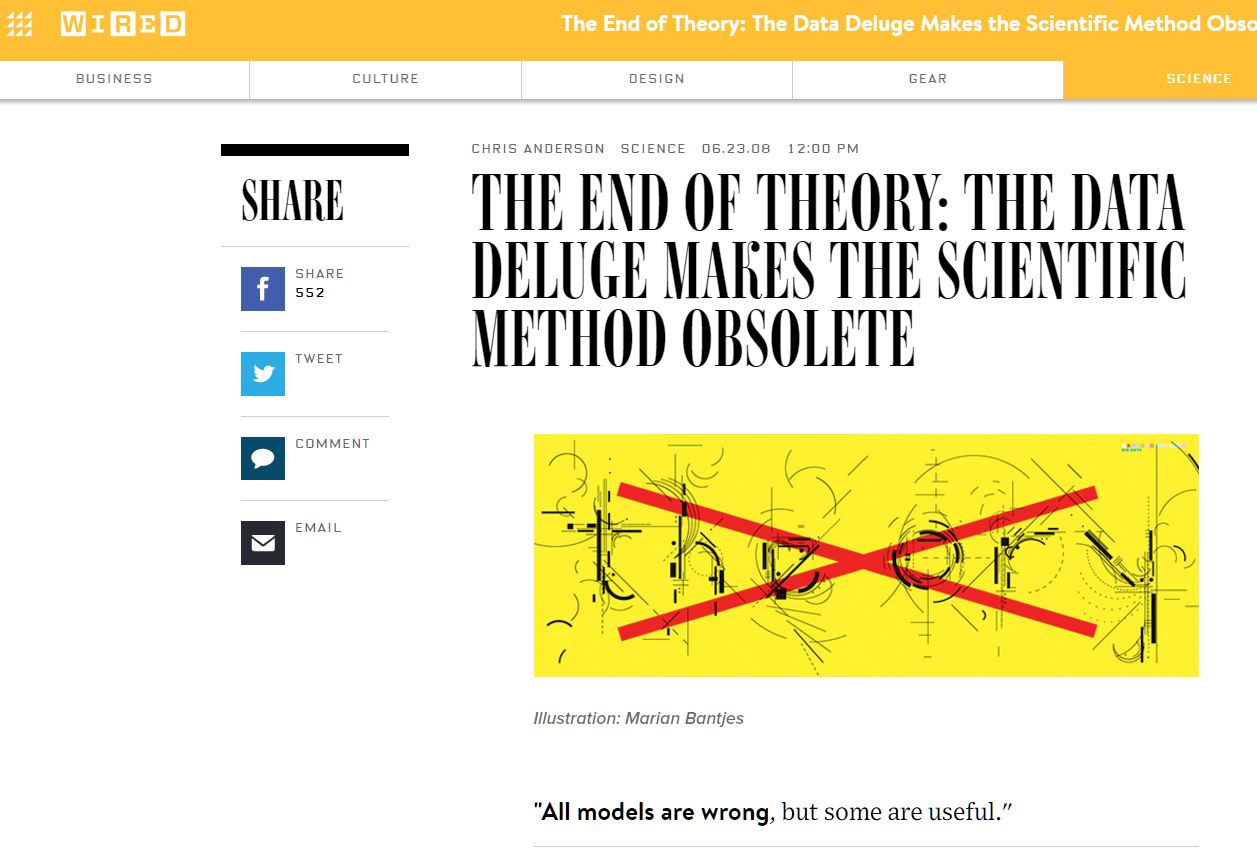

Anderson: "With enough data, the numbers speak for themselves"

“The whole point in performing unsupervised methods in data mining is to find previously unknown knowledge”

Färber et al 2010, 2

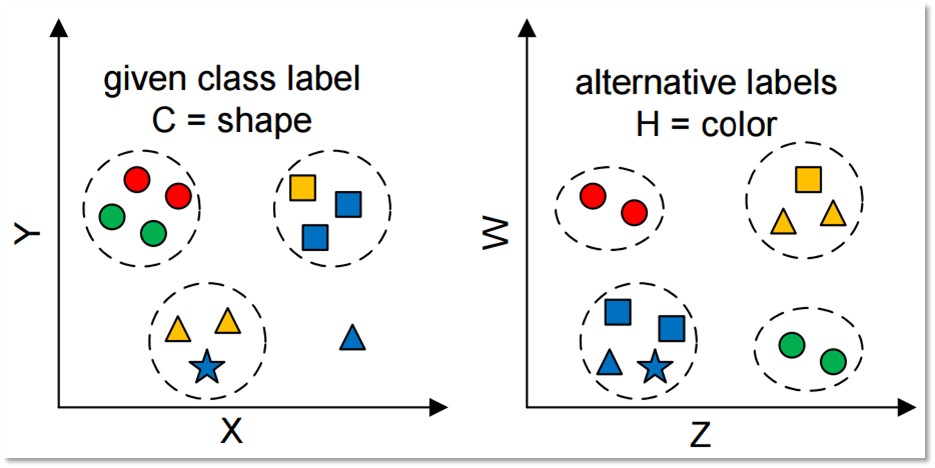

Färber et al 2010

many methods do not generate a single, optimal, ‘gold standard’ result

infinite parameter combinations

generative components

partial grouping assignments

How do you validate such a model?

How do you evaluate such a model?

How do you EVALU-date? such a model?

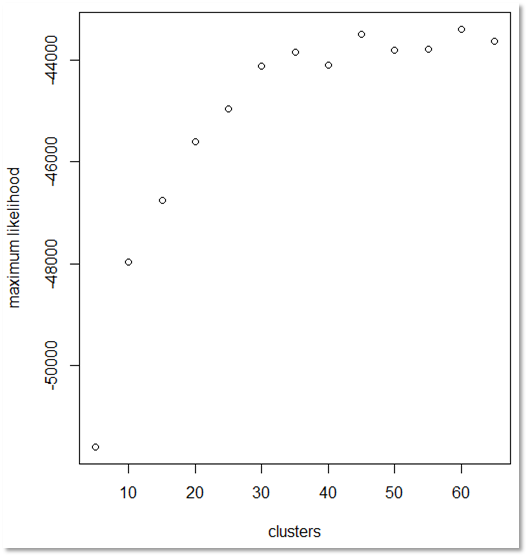

Expectiation-Maximization / Likelihood Function

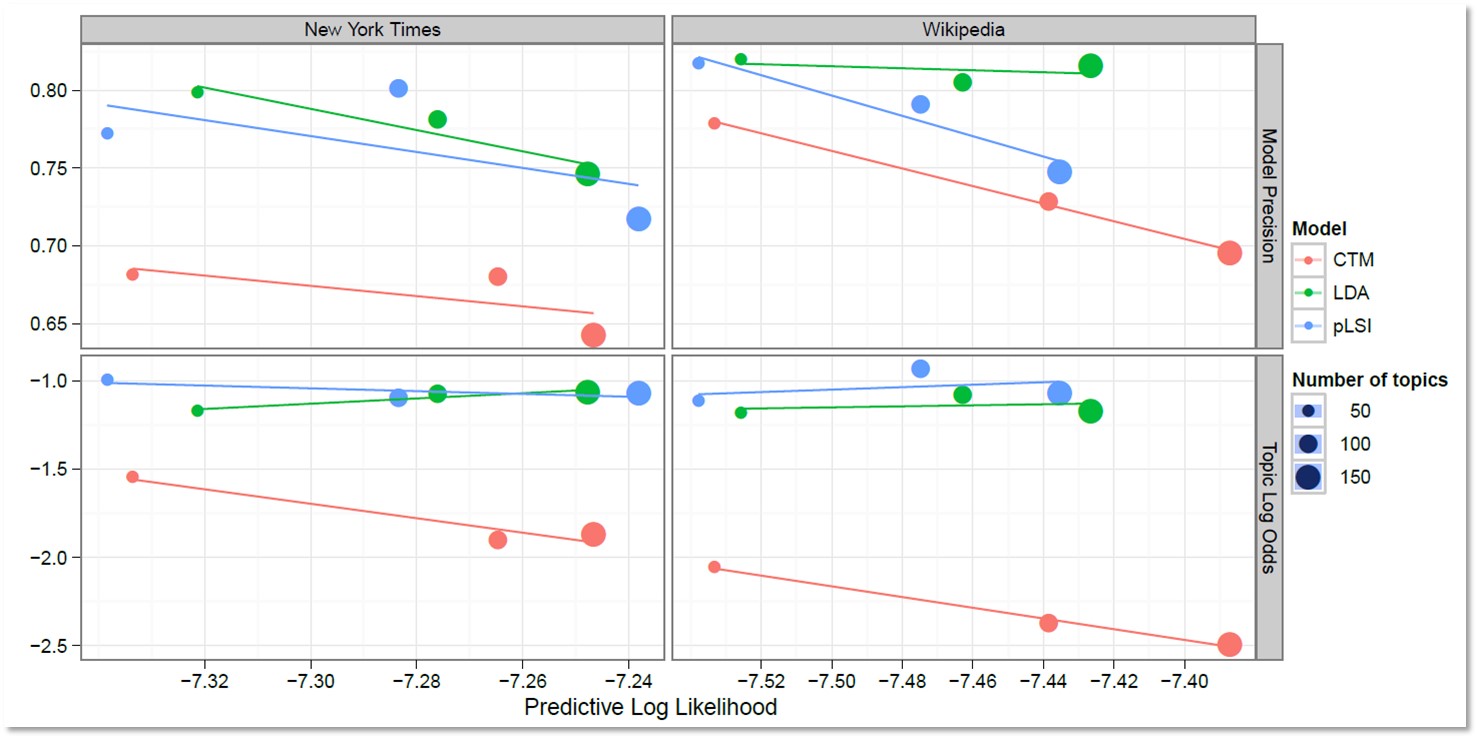

Chang et al 2009

Interestingness Measures

Measure	Classification	Description
Conciseness	Objective	pattern contains few attribute-value pairs
Generality/Coverage	Objective	pattern characterises greater proportion of inputs
Diversity	Objective	pattern contents are significantly different from one another
Peculiarity	Objective	pattern is far from other patterns as per a distance measure
Reliability	Objective	pattern occurs in high percentage of applicable cases
Novelty	Subjective	pattern contains information not previously known or inferrable
Unexpectedness/Surprisingness	Subjective	pattern contradicts existing expectations
Utility	Semantic	pattern contributes toward reaching a goal
Actionability	Semantic	pattern enables decision making

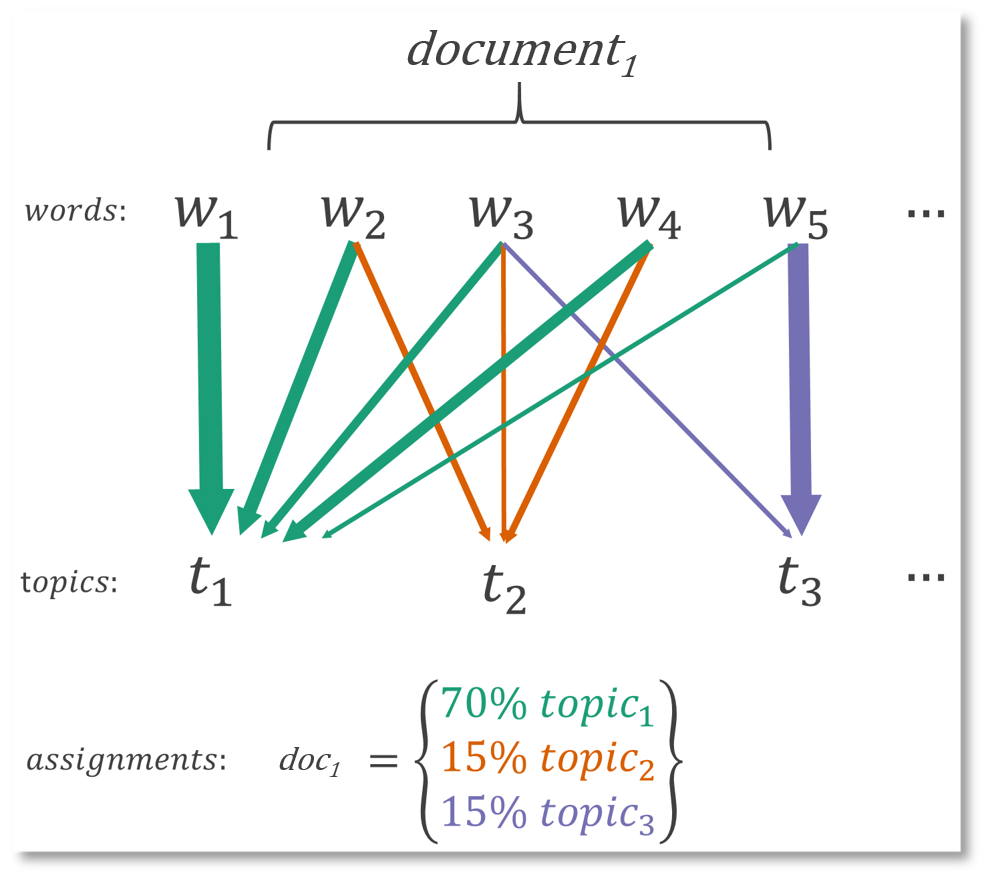

An illustration: Latent Dirichlet Allocation

Semi-classification of text

3 critical parameters

k - number of topics/clusters
alpha - prior distribution of documents-to-topics
minimum term-frequency/inverse-document frequency (tf-idf)- defines terms in the vocabulary

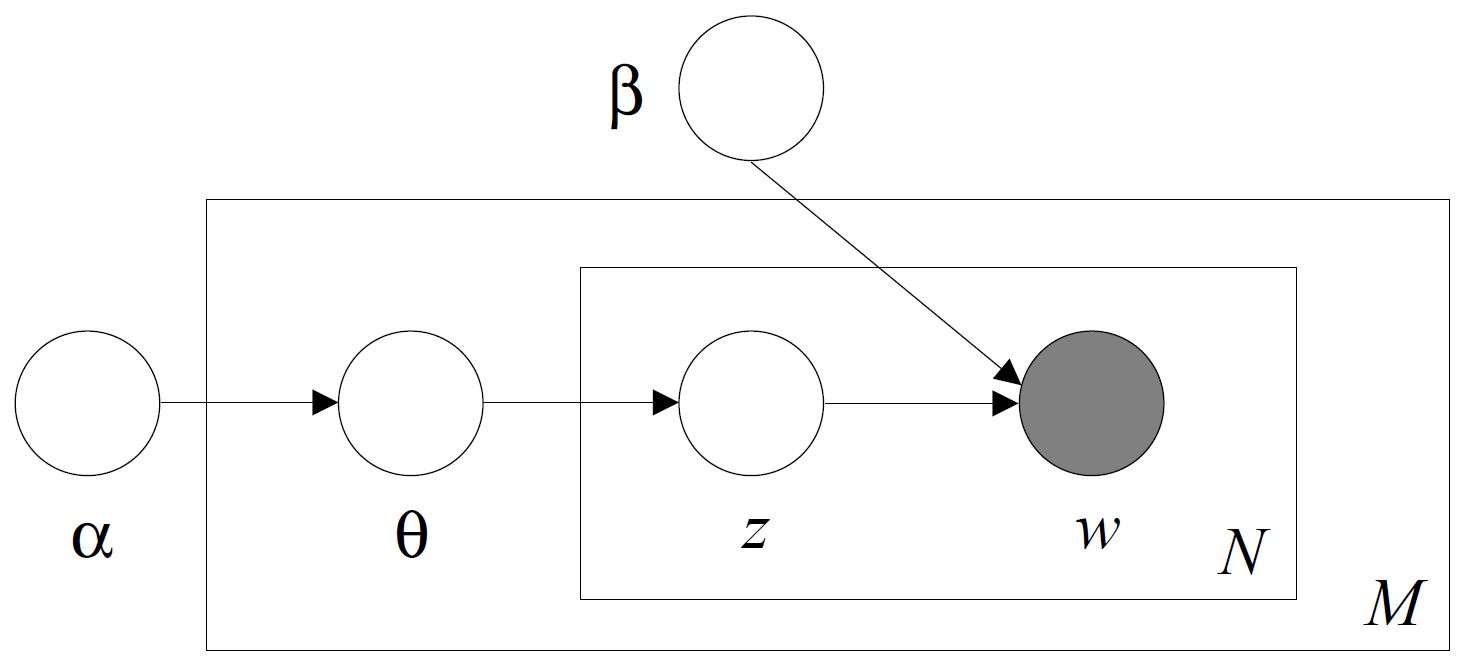

Generative model

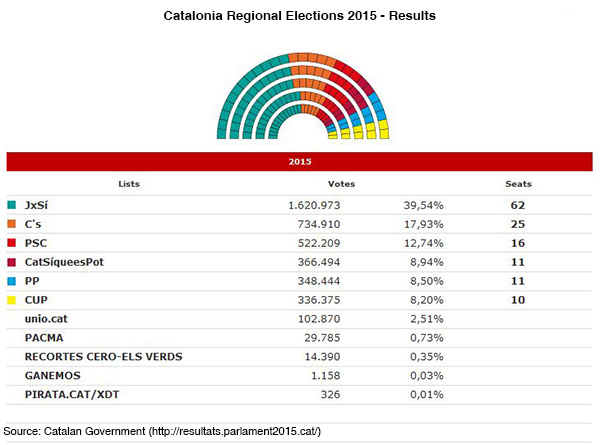

A case study: Catalonian independence movement

Chislett 2015, Real Instituto Elcano Highfield 2002, El Centro Campista

21688 English news articles

August-November 2015

local, regional, national, international news sources

variety of specific sections, where available

Model Sensativity Analysis

4 levels of k: 10, 25, 50, 100

3 minimum term frequency - inverse document frequency

4 alpha prior distributions

Conciseness

pattern contains few attribute-value pairs

fewer topics fit better into user's knowledge base

Generality/Coverage

pattern characterises greater proportion of inputs

higher minimum tf-idf reduces size of vocabulary. documents consisting of no terms in vocabulary cannot be coded

documents consisting of no terms in vocabulary cannot be coded

measured as percent of documents coded

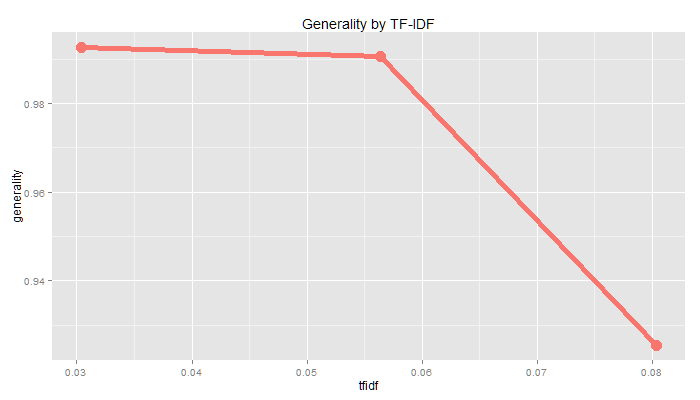

Generality/Coverage

pattern characterises greater proportion of inputs

generality

Diversity

pattern contents are significantly different from one another

topic disparity yields new, separate insights

measured as variance from even distribution of each document to every topic

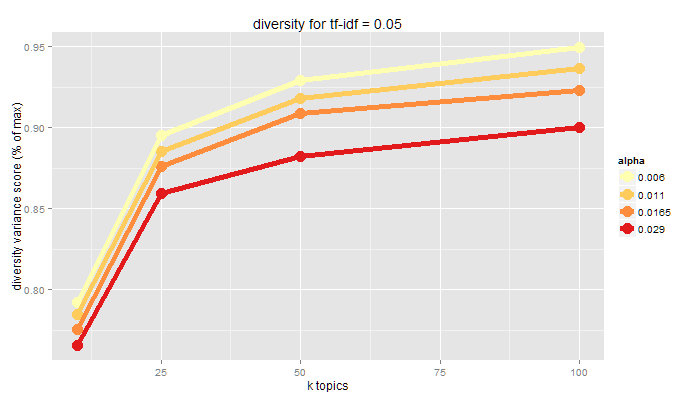

Diversity

pattern contents are significantly different from one another

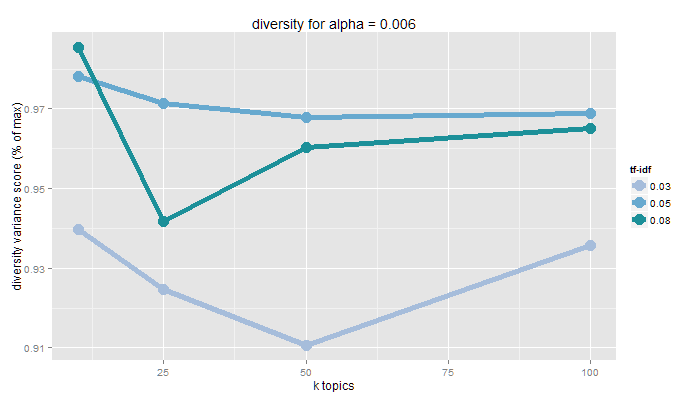

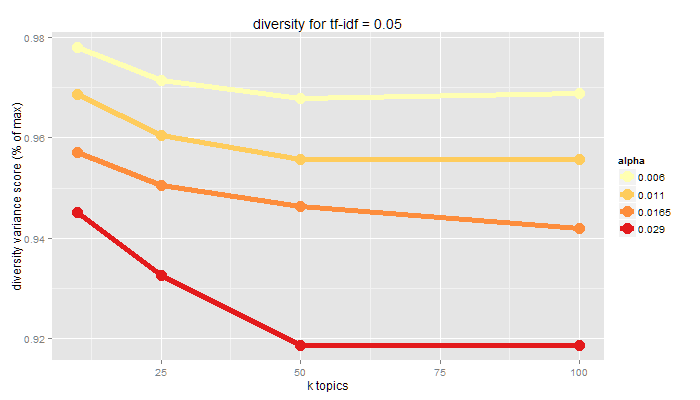

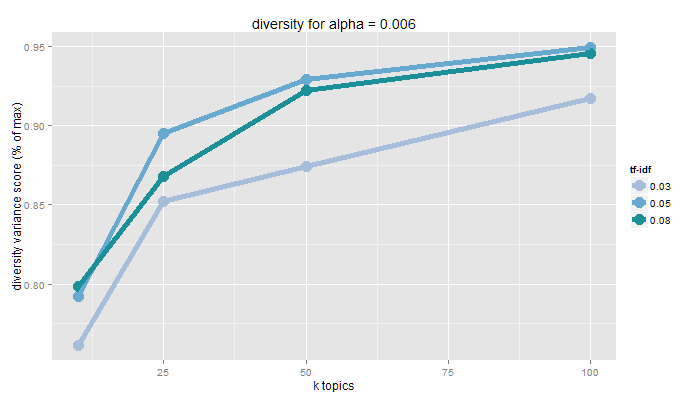

raw diversity score diversity score as percent of theoretical max

Diversity

pattern contents are significantly different from one another

raw diversity score diversity score as percent of theoretical max

Peculiarity

pattern is far from other patterns as per a distance measure

measured as inverse of proportion of terms shared by topics in a pair of patterns

number of topics and minimum tf-idf influence potentially shared terms

Peculiarity

pattern is far from other patterns as per a distance measure

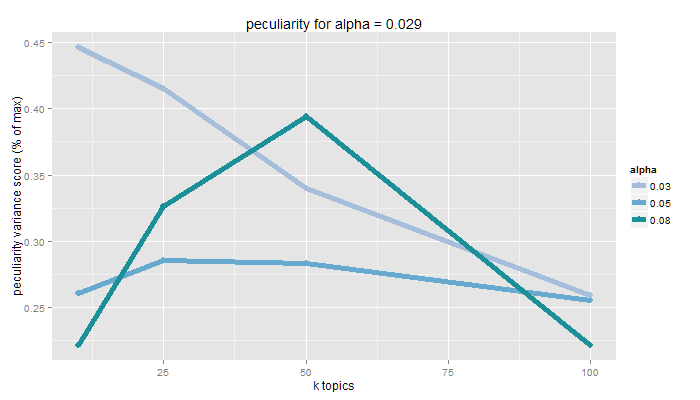

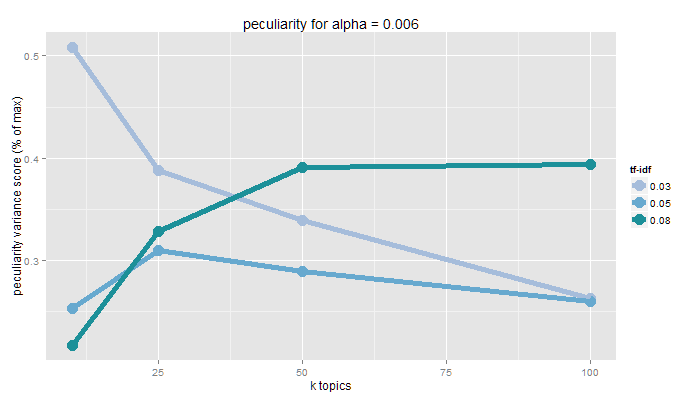

alpha = 0.006 alpha = 0.029

Peculiarity

pattern is far from other patterns as per a distance measure

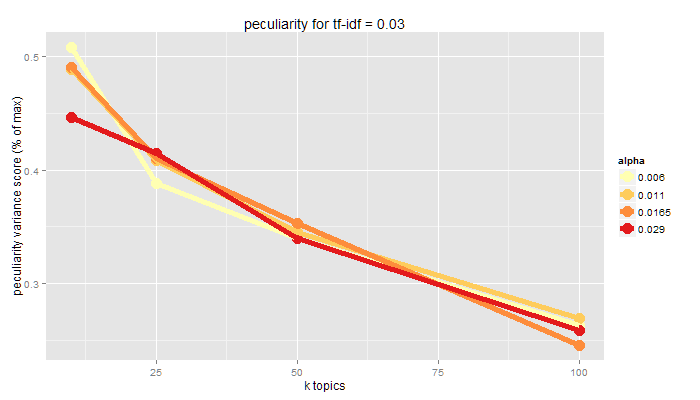

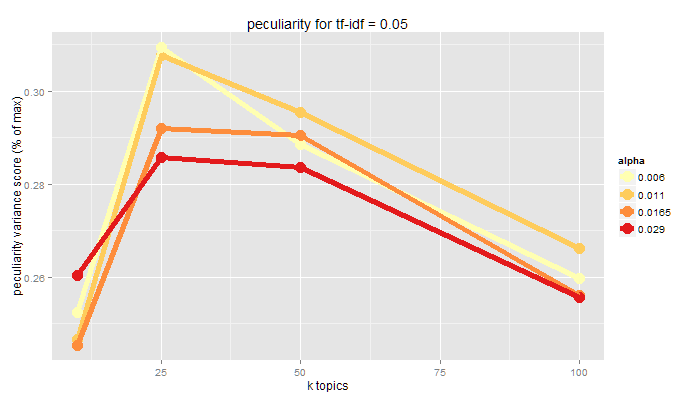

minimum tf-idf = 0.03 minimum tf-idf = 0.056

Reliability

pattern occurs in high percentage of applicable cases

track topics and terms for individual documents across patterns

take random sample of documents

Novelty

pattern contains information not previously known or inferrable

subjective evaluation of topics and term combinations

increased range of terms - higher tf-idf

--and--

increased topics

increase the range of information available

Novelty

pattern contains information not previously known or inferrable

10 topic model: 'glencor' 'casilla' 'aspa' 'volkswagen' 'emiss' 'pet' 'deulofeu' 'elch'

25 topic model: 'dish' 'chicken' 'pan' 'rice' 'dice' 'squid' 'nadal' 'prawn'

50 topic model: 'abus' 'nosecessionist' 'insult' 'shakira' 'pop' 'summon' 'racist' 'fling'

100 topic model: 'pet' 'vet' 'microchip' 'vaccine' 'refuge' 'fenc' 'foncubierta' 'martinez'

Unexpectedness/Surprisingness

pattern contradicts existing expectations

special case of novelty

Utility/Actionability

pattern contributes toward reaching a goal/taking an action

I combine goals and actions in this evaluation

select patterns to map semantic spaces of topics onto geographic space

Summary

Measure	Recommendation	Confidence
Conciseness	low k	medium
Generality/Coverage	low minimum tf-idf	high
Diversity	low alpha, mid tf-idf	medium
Peculiarity	low k: low alpha, high k: high tf-idf	low
Reliability	*	*
Novelty	high topics, low minimum tf-idf	high
Unexpectedness/Surprisingness	high topics, medium tf-idf, medium tf-idf	low
Utility/Actionability	*	*

Final thoughts

evaluation, not validation

consider what it is we are evaluating

approaching general theory on using black boxmethods

interestingness measures are fairly independent

spatio-temporal context is an advantage

Thank you!

Sam Stehle

samstehle@gmail.com

@SamStehle
